Some context for NYT on wind energy variability

NREL wind penetrationI don’t often comment on daily journalism, but yesterday’s NYT piece on wind energy variability (print: “Grappling With the Grid” / web: “Intermittent Nature of Green Power Is Challenge for Utilities,” by Diane Cardwell) could use a little context.

Here’s the crux of the NYT story:

It is not the first time the grid system operator, ISO New England, which operates in six states, has cut back energy from the [wind] farm since it began operating at the end of last year, or from others in the region, including some in Maine and New Hampshire. Other windy states and regions like Texas and the Midwest have experienced similar cutbacks, known as curtailments.

But the recent Vermont episode, which set off a debate among government officials, the New England grid executives and the wind farm producers, highlights a broader struggle taking place across the country as utilities increasingly turn to renewable sources of energy. Because energy produced by wind, for example, is intermittent, its generating capacity is harder to predict than conventional power’s. And a lack of widely available, cost-effective ways to store electricity generated by wind only compounds the complex current marketplace.

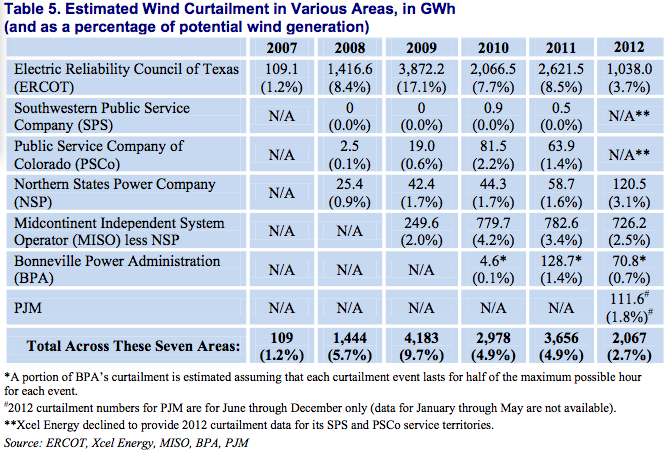

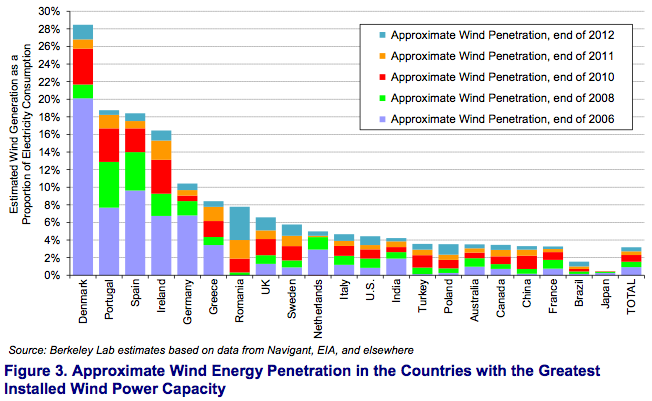

Context is readily available in the newly published (August 2013) National Renewable Energy Laboratory (NREL) “2012 Wind Technologies Market Report” (pdf), from which I reproduced the figure at top and the graph below. The figure for international wind penetration shows that grid integration of several times current U.S. levels is possible; the graph of U.S. regional curtailment gives the data for the challenges that Cardwell describes.

Although U.S. curtailment percentages have declined overall, the challenges of integration are real — though primarily institutional, rather than technological (according to NREL here).

NREL curtailment Clearly, there is a lot to be learned from European experiences. One source I’ve found valuable has been the 2011 Stanford TomKat Center Grid Integration of Renewables Workshop (videos and presentations), where Hans Henrik Lindboe of EA Energy Analyses spoke frankly on the experiences of global leader Denmark.

A few highlights from Lindboe’s talk:

In 1993, Denmark changed government. We got a social democratic party. They were very keen on being green, and within eight years, the amount of wind power increased five times. …

The utility people were very preoccupied by showing scientifically — with big, nice models — that going above five percent renewable energy was terrible. Couldn’t happen. You would get blackouts. …

In the year 2000, Denmark joined the Nordic electricity market. … I believe this was one of the most important incentives for integration of renewable energy: to have an efficient market. … Money-wise the spot market is 90 to 95 percent of the turnover in the electricity market. … The spot market is an hour-by-hour auction. …

It’s important that [the electricity market] is international, because you get the favor of geographical spreading. … We trade in the spot market internationally, but we also trade reserves internationally. So if we have a prediction error in the western part of Denmark, it might be [addressed with] regulated resources from Sweden, or from Norway, or even from Finland, transferred down to us, via the grid.

See also:
U.S. National Institute of Standards and Technology (NIST) on Smart Grid Interoperability Standards;
and my 2011 P&P post, “Intermittency and the HVDC Supergrid.”
